Daosafe

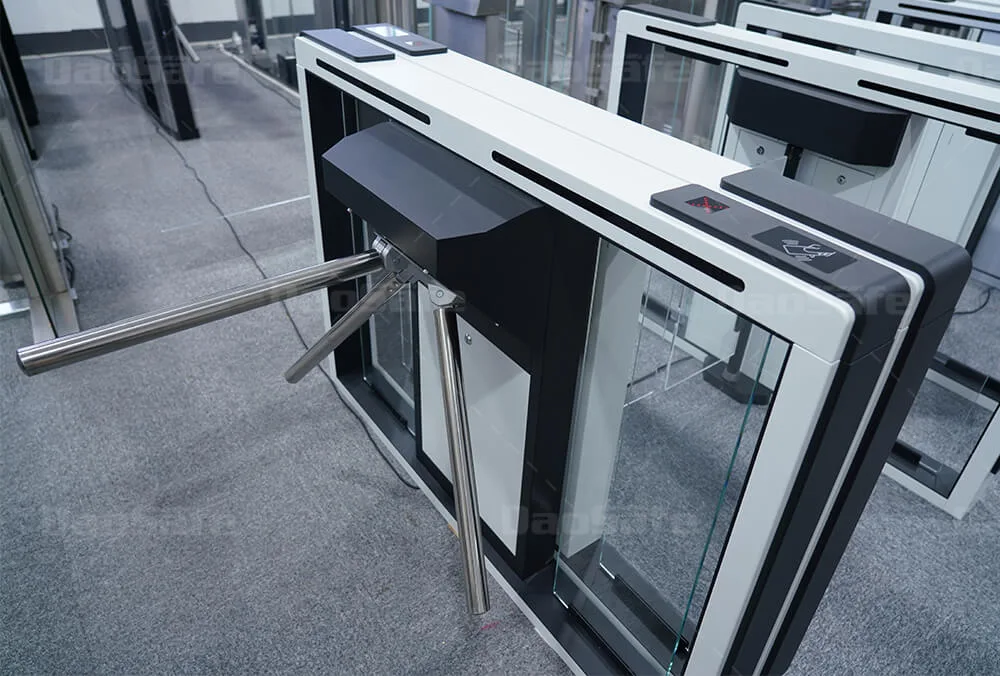

Daosafe Quantum Tripod Turnstile DS-Q10

Slim glass-panel tripod turnstile with 304 stainless-steel arms and 35 people/min flow.

The Quantum DS-Q10 is a tripod turnstile for controlled entrances in offices, factories, campuses and public buildings. A powder-coated galvanized-steel frame with tempered-glass card-reader panels holds three 304 stainless-steel arms that let one person through at a time. It works in single or bi-directional mode, drops its arms automatically on power loss for fire-safety compliance, and accepts card, QR/barcode, face, fingerprint, touchless-button or palm-vein readers through dry-contact, relay or RS485 signals. The standard IP54 housing can be specified to IP65 for outdoor lanes, and logo, colour and size are customisable.

Single or bi-directional passage
Arms drop automatically when power is off
Arms auto-lock after a set delay (default 5 s)
Red/green LED entry indicators
One person per pass to prevent tailgating

Category: Turnstile

Authorised Daosafe partner in Jordan · Local warranty and support

More features

Works with card, QR, face, fingerprint and palm-vein readers
Indoor or outdoor use (IP54 standard, IP65 customizable)
3-year warranty

Why buy through Vodatel

Local technical support

Factory-trained engineers in Amman handle installation, configuration and maintenance.

Supply and rollout

From single units to multi-site deployments, delivered and commissioned by our team.

Warranty backed

Manufacturer warranty handled locally — no cross-border returns to manage.
