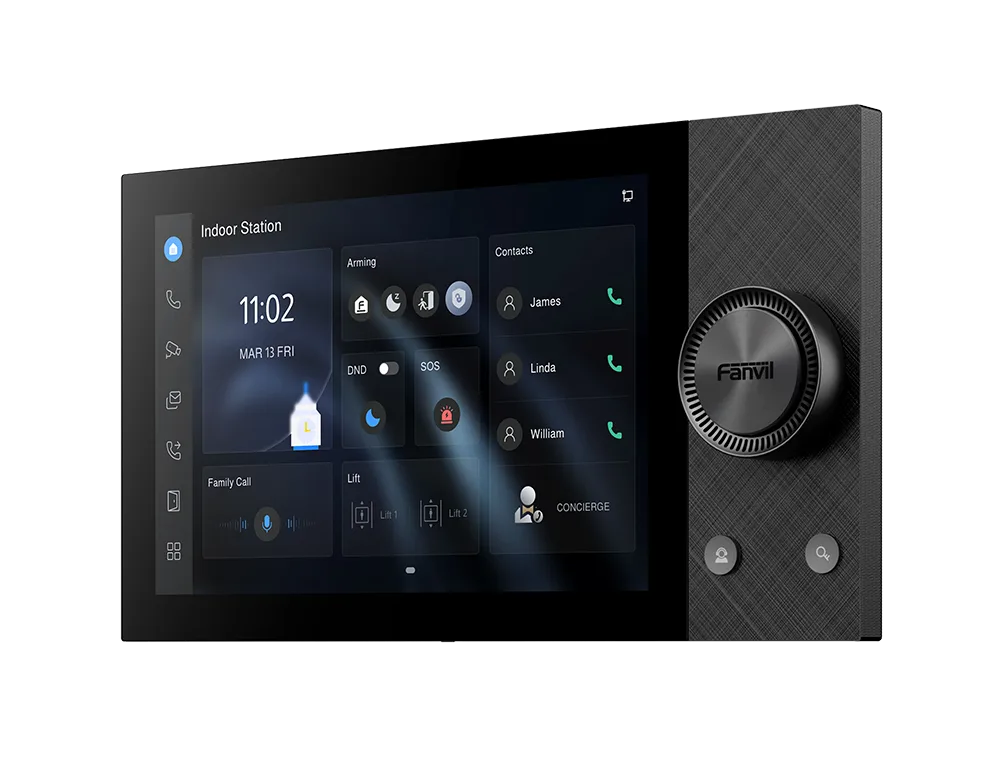

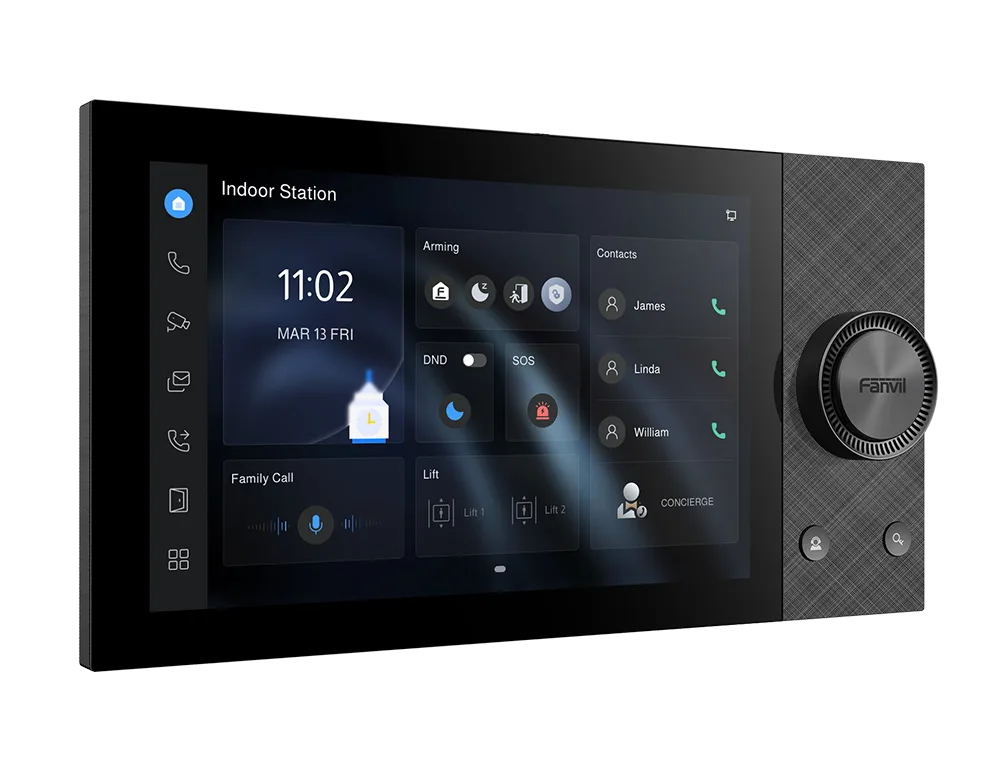

Fanvil i566W

10.1-inch SIP indoor station with video intercom, Wi-Fi 6, a volume knob and access control

The Fanvil i566W is a 10.1-inch SIP indoor station that combines video intercom and access control in a slim wall or desktop unit. It answers calls from Fanvil door phones, opens doors remotely and supports one-touch family calls between rooms. A 10.1-inch 1280 x 800 capacitive touchscreen, a tactile volume knob and a 5 W speaker with noise cancellation make it simple for all ages to use. It supports six SIP lines, H.264 video decoding up to 1080p, ONVIF, eight alarm inputs and a TF card slot, with Wi-Fi 6 and BLE keys for calling and unlocking. It suits residences, villas, offices and commercial buildings, and runs on PoE or a 12 V adapter.

10.1-inch 1280 x 800 IPS capacitive touchscreen
Tactile volume knob and two shortcut keys
5 W speaker with noise cancellation and 5 m voice pickup
6 SIP lines, H.264 decoding up to 1080p, ONVIF
One-touch family call between rooms

Finishes: Gunmetal grey
Category: Access Control & Attendance

Authorised Fanvil partner in Jordan · Local warranty and support

More features

Wi-Fi 6 and BLE key for calling and door unlocking
8 alarm inputs, relay output, doorbell input and RS-485
Wall mounting or desktop installation, PoE or 12 V power

Why buy through Vodatel

Local technical support

Factory-trained engineers in Amman handle installation, configuration and maintenance.

Supply and rollout

From single units to multi-site deployments, delivered and commissioned by our team.

Warranty backed

Manufacturer warranty handled locally — no cross-border returns to manage.
