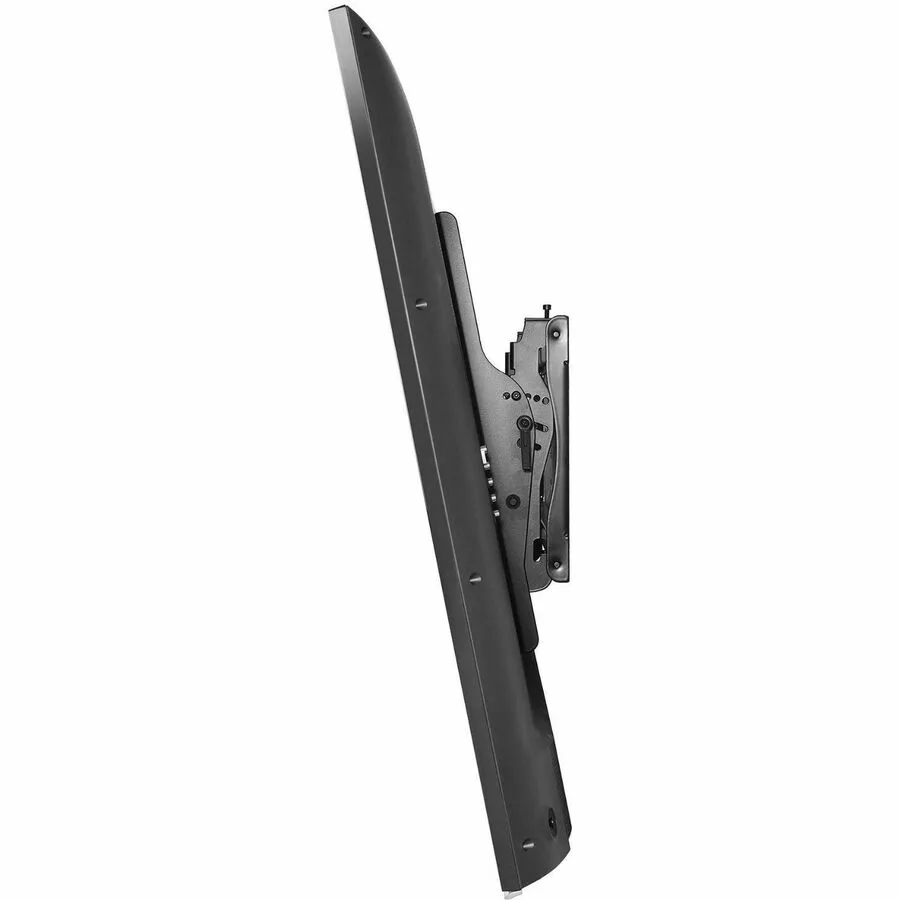

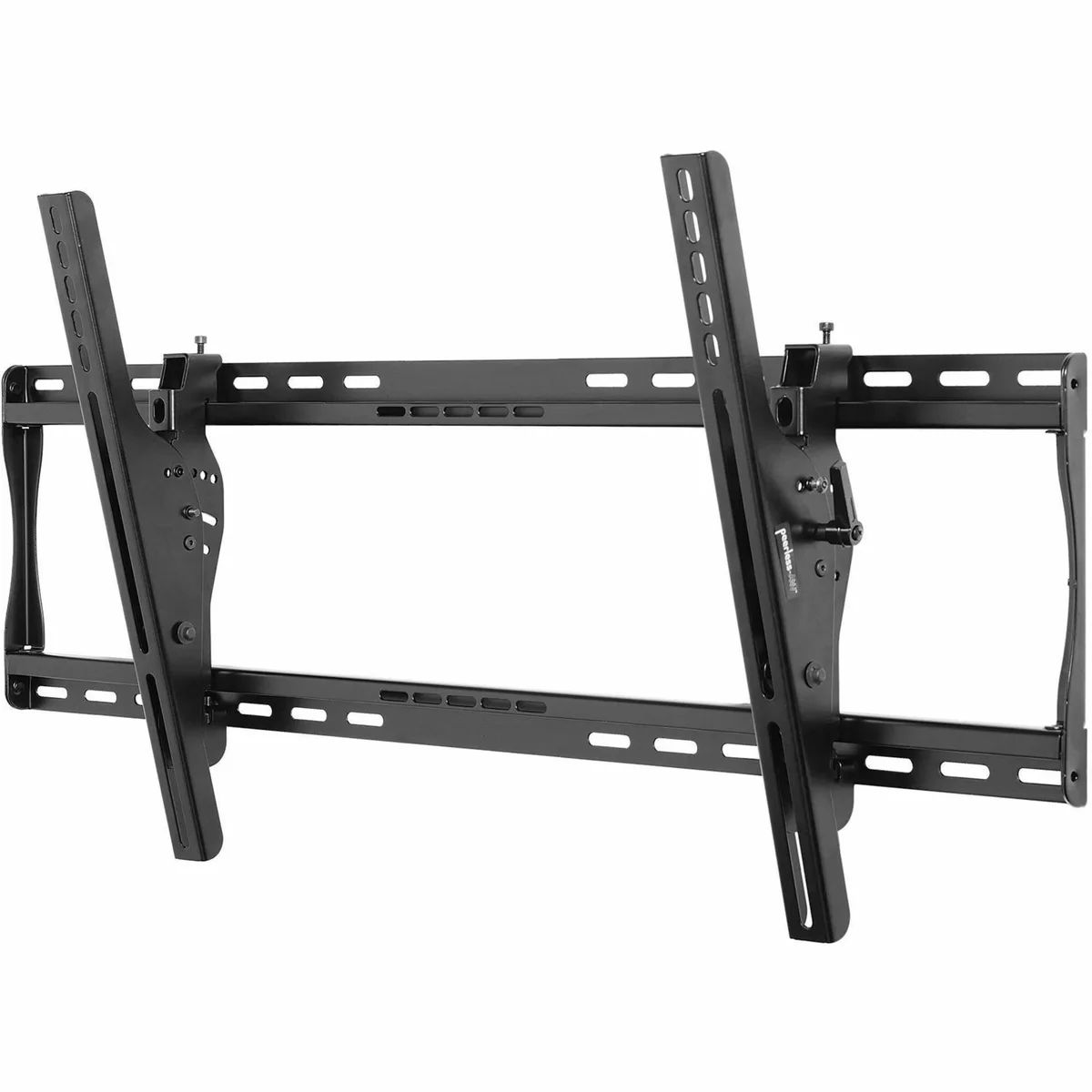

Peerless-AV SmartMount ST660P Universal Tilt Wall Mount

Tilting mount for 39"–80" displays: 15° forward, 5° back tilt, up to 91 kg

The Peerless-AV SmartMount ST660P is a universal tilting wall mount for 39" to 80" flat panel displays weighing up to 91 kg (200 lb). Tilt adjusts 15° forward and 5° backward, and a ratcheting handle locks the angle, with IncreLok tilt locking to deter tampering. It accepts VESA patterns from 200 x 100 up to 800 x 400 mm and displays with patterns up to 824 x 405 mm. Post-installation levelling gives up to 6 mm of vertical adjustment per adaptor bracket, and the display can be shifted up to 203 mm horizontally to centre it on the wall. The Hook-and-Hang system lets one person install the display. The ST660P ships with standard hardware, while the ST660 adds theft-resistant screws. Vodatel supplies, installs and supports it in Jordan as an authorised Peerless-AV partner.

Tilting mount for 39" to 80" flat panel displays
Up to 91 kg (200 lb) load capacity
15° forward and 5° backward tilt
VESA 200 x 100 to 800 x 400 mm, patterns up to 824 x 405 mm
Horizontal shift up to 203 mm for centring

Finishes: Semi-gloss black
Category: Wall Mount

UL Listed
TAA

Authorised Peerless partner in Jordan · Local warranty and support

More features

Up to 6 mm vertical adjustment per adaptor bracket
Ratcheting handle locks the tilt angle
Hook-and-Hang installation by a single person

Why buy through Vodatel

Local technical support

Factory-trained engineers in Amman handle installation, configuration and maintenance.

Supply and rollout

From single units to multi-site deployments, delivered and commissioned by our team.

Warranty backed

Manufacturer warranty handled locally — no cross-border returns to manage.
